Viscosity meter manufacturers Omnitek is based in The Netherlands and brings you the best currently available viscometer as one of the world’s leading viscometer manufacturers. Use our tailor-made viscosity meter when measuring the viscosity of petroleum products with an accuracy you have never seen before. You can count on us as your viscometer manufacturer, we supply to a variety of labs in different industries ranging from QC to R&D to used/new oil analysis to analyze highly viscous samples like HFO, crude oils, asphalts, and waxes. We make sure that within our product range, our customers are able to make the right selection for the viscosity test of their products. Therefore, we offer tailor-made solutions to our clients.
OMNITEK
Viscosity measurement compliant to test methods ASTM D445, D446, D2170 and AASHTO T201

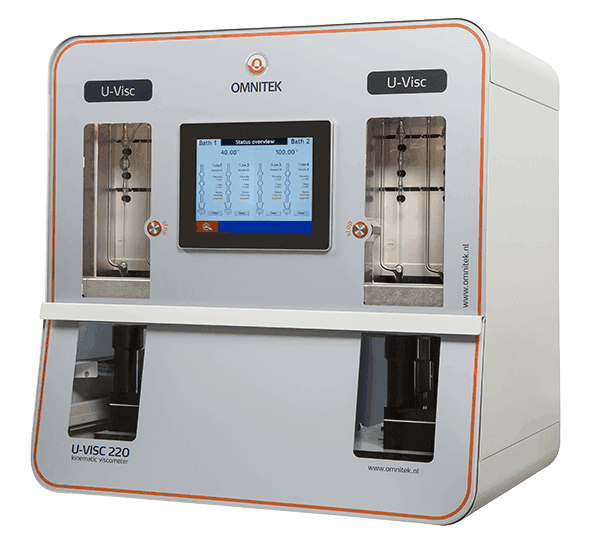

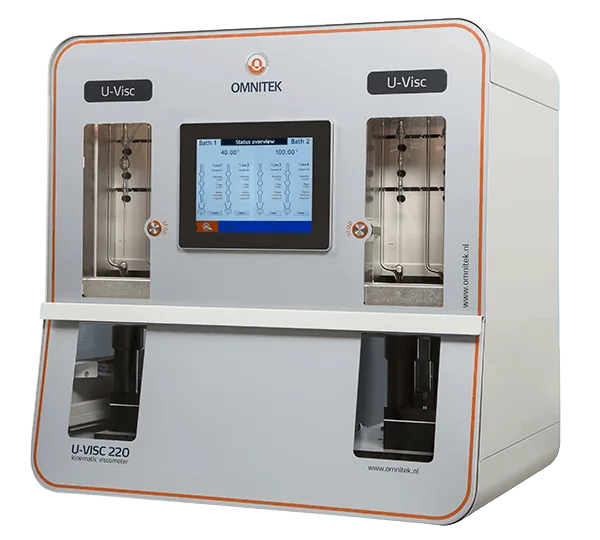

The U-Visc is the next generation of completely automatic viscometry systems compliant with ASTM D445
S-flow IV⁺ Kinematic Viscometer. Fully automatic viscometer for highly viscous samples up to 120,000 mm²/s
Cito Autosampler for S-flow IV Autosampler for automated Houillon viscosity testing
The system can process highly viscous samples with viscosities ranging up to 120,000 mm2/s, up to 150°C. It fully complies with ASTM D445, D446, D2170 and AASHTO T201 to test your highly viscous sample.

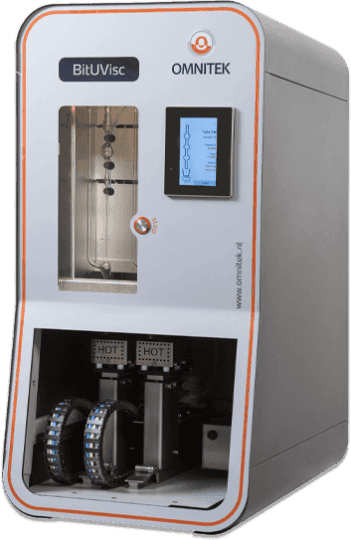

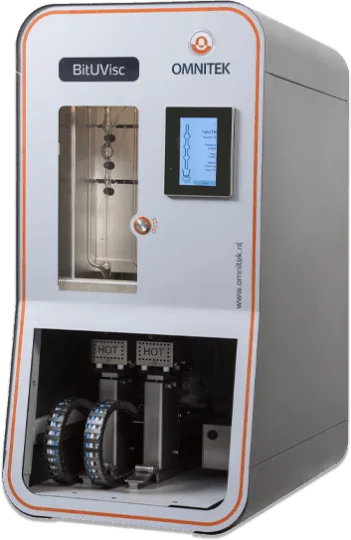

There are 2 different models available: 110 and 120. BitUVisc 110 features a single thermostatic bath with 1 viscometer tube whereas BitUVisc 120 model holds 2 viscometer tubes in a single bath. All BitUVisc instruments are equipped with auto-sampling, preheating, fully automatic dual solvent cleaning, and drying.
The system combines several unique features, making it the instrument of choice in many applications, ranging from QC to R&D to used oil analysis. While offering full compliance with ASTM D445/446, the specially designed viscometer tubes cover a 100-fold range, e.g., from 1 to 100 mm2/s. The tubes are based on the well-known and proven Ubbelohde design, but only require 8-16 ml of sample and approximately 12-15 ml of solvent for cleaning. Available with single or dual solvent cleaning, this tailor-made instrument measures kinematic viscosity in Newtonian fluids like lubricants, fuels, or dissolved plastics between 0.15 and 25,000 mm2/s at 40°C.

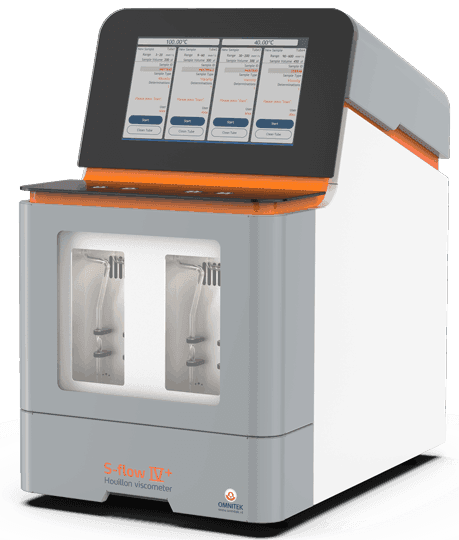

The latest generation of the new S-flow is the Houillon viscometer which builds on the solid foundation of its predecessors, like the U-Visc, to offer the ultimate in automatic viscosity testing of Newtonian samples, such as petroleum products.
This Houillon viscometer complies fully with ASTM D7279. It is the ideal system for used oil analysis labs that need to test a wide range of lubricant viscosities. Tell us more about the required specifications to receive a tailor-made viscometer system.

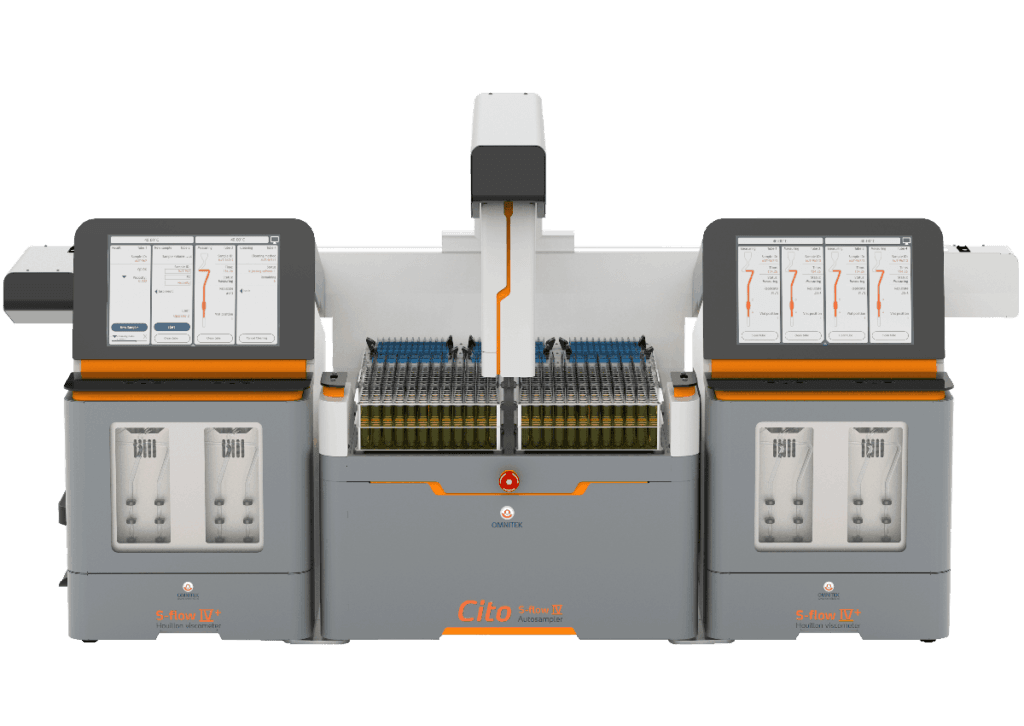

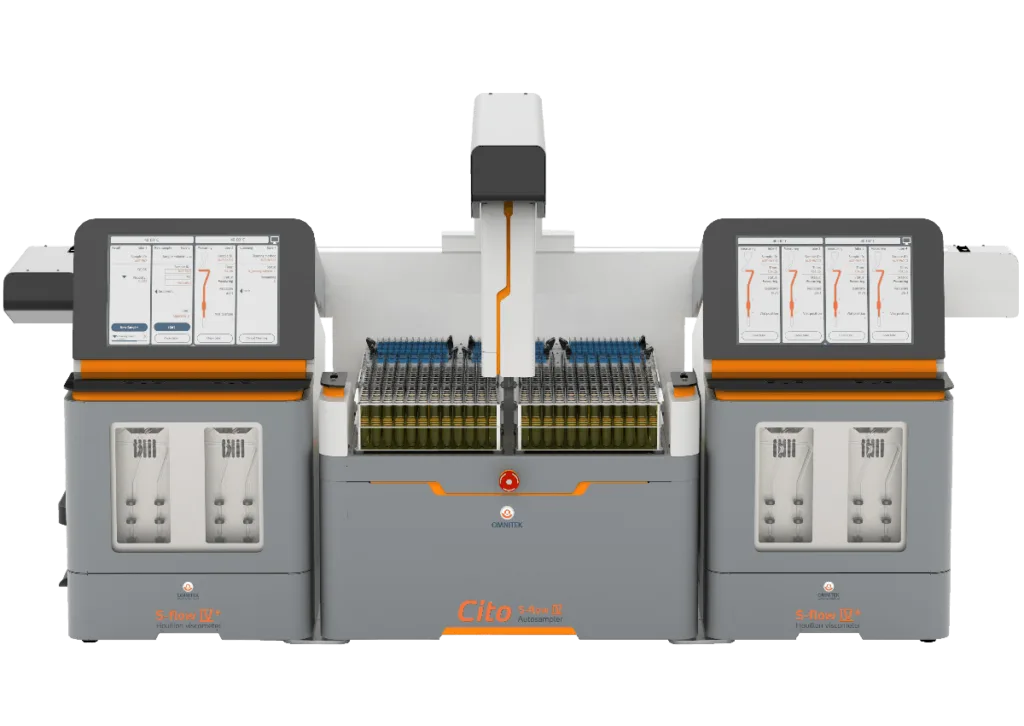

Cito consists of a custom robotic arm that is mounted onto a base frame, which can reach and serve up to two S-flow IV instruments, one on either side. Around the base and on the flat top of Cito sufficient space is offered to store pipette racks and sample trays.
Cito automatically detects the level in each individual sample vial, thereby minimizing tip immersion depth. Additionally, a new drip-prevention mechanism places a retractable reservoir below the pipette to catch any droplet that may fall from the tip, eliminating any potential spillage or carry-over.
From a single sample aspiration, 2 sequential injections in 2 independent baths can be performed using only a single pipette tip. When injecting into tubes at 40 ºC and 100 ºC, the PC software automatically provides the Viscosity Index. Up to 80 injections per hour can be performed at 2 temperatures in this manner, provided that 2 S-flow IV systems are connected.

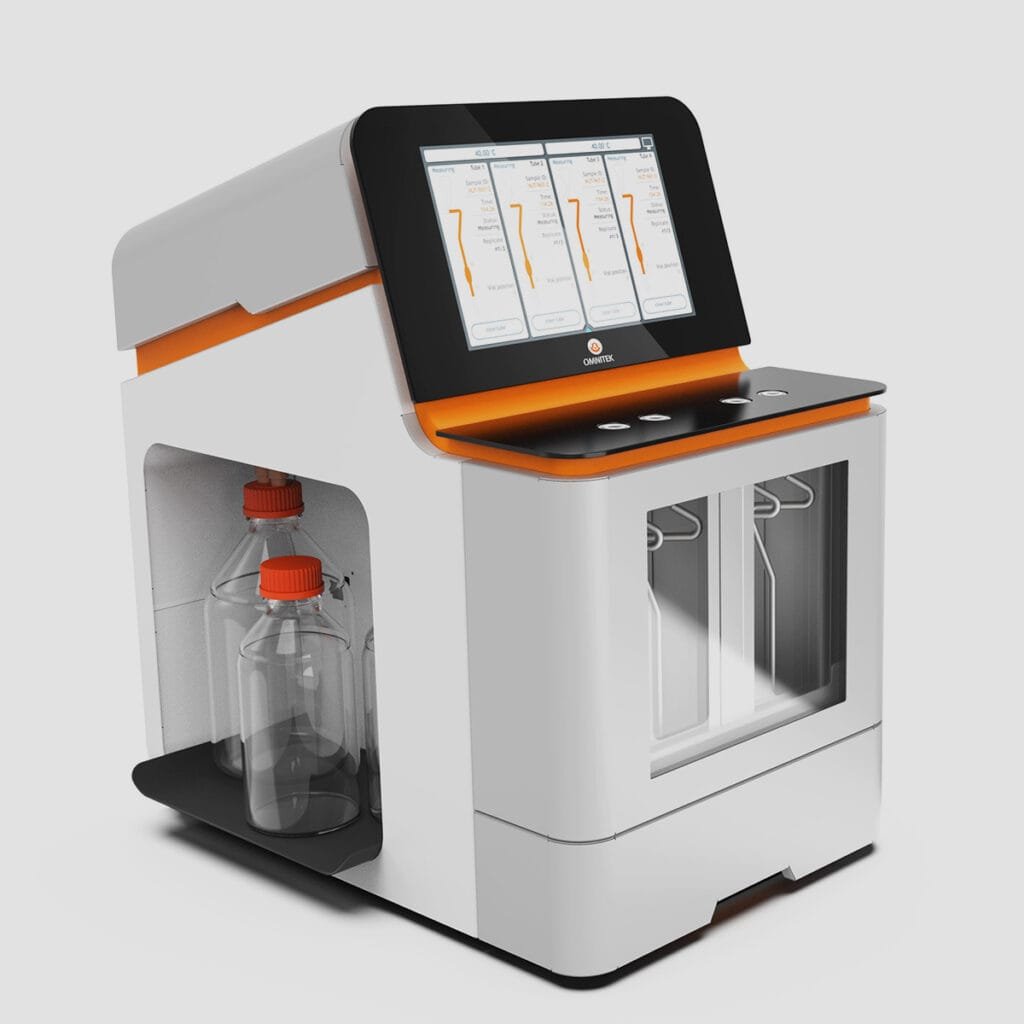

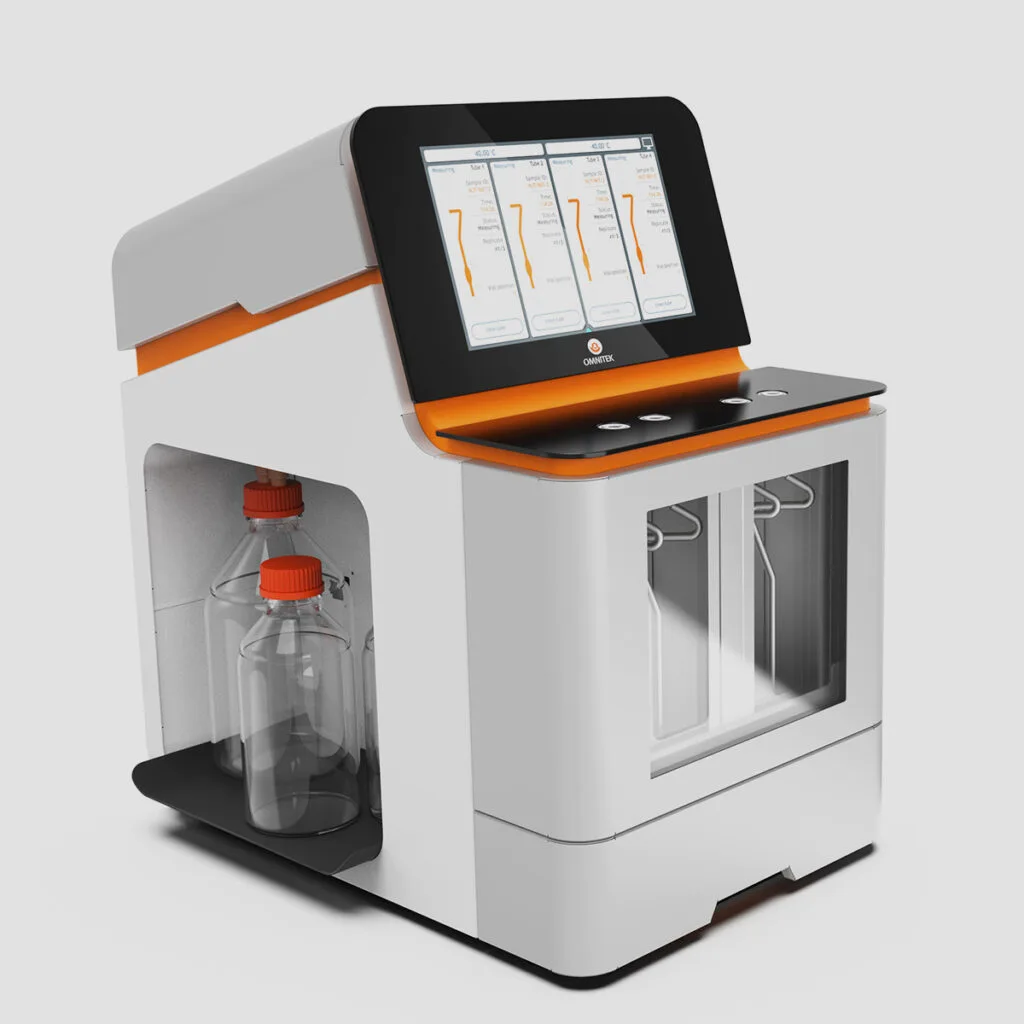

S-flow IV⁺ Kinematic Viscometer
Features
- Applicable for fuels, base oils, formulated oils, and petroleum products as well as water-based fluids
- Compliant with requirements for ASTM D7279, ASTM 2270 and correlation to ASTM D445
- High throughput: up to 80 samples per hour under ideal operation conditions
- Very easy to use and maintain
- Small sample volume: 0.3 – 1.0 ml
- Low solvent consumption: 2 – 3 ml per sample.
- Extremely accurate temperature control and flow-time measurement independent of fluid type
- Automatic calibration of the optic amplifiers
- Automatic flow time measurement with ultraprecise meniscus detection
- Fully automatic cleaning and drying
- Fast & easy tube replacement (tubes are not connected to optical sensors)
- No need to drain bath during tube replacement.
- Single or dual solvent injection (optional)
- Simultaneous measurements at 2 temperatures with 1 system
- Integrated VI calculations
- Stand-alone unit. No PC required.
- Chemically resistant to allow for all common solvents
- Bath scheduler to turn baths on/off on preset times saves energy when the lab is closed and ensures the system is ready to go when it opens back up
- Bath temperature graphs on screen
- Bath backlight to improve visibility of viscometer tubes and sensors
- User Access Control
- Duplo measurement capability
- Integrated back flushing
- Optional autosampler
